Neodymium magnet

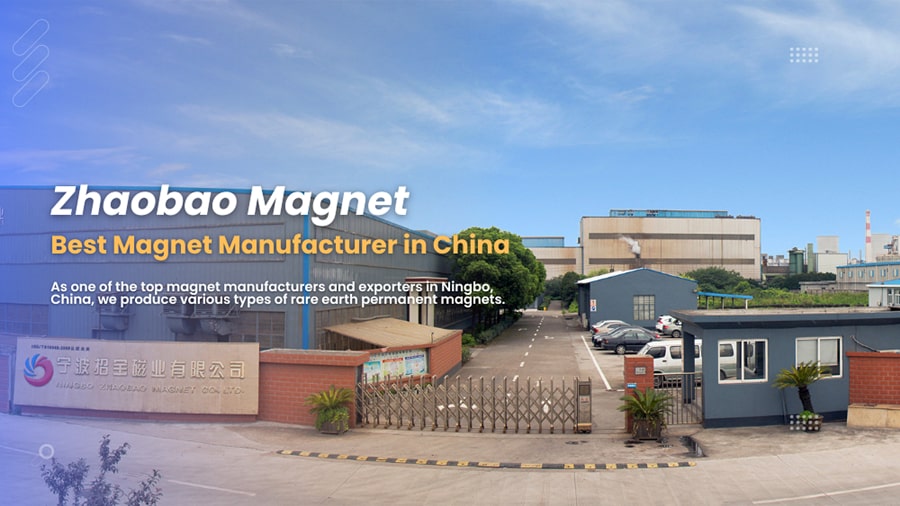

Best Magnet Manufacturer in China

Do you need a professional professional neodymium magnet manufacturer to serve you? Then we may meet your requirements, we are one of the top ten permanent magnet manufacturers from China, specializing in selling neodymium magnets and related products to overseas markets!

If you need to buy cheap neodymium magnets for your project then please contact us!



What are Neodymium Magnets?

Neodymium magnets (also known as NdFeB magnets) are tetragonal crystals formed from neodymium, iron, and boron (Nd2Fe14B). This magnet is the strongest magnet in the world and is also a commonly used rare earth magnet. These magnets are highly resistant to demagnetization and are plated (usually nickel plated) to protect them from corrosion and chipping. Neodymium magnets are available in a variety of shapes, sizes and grades.

Due to their high magnetic strength and relatively low cost, they are the first choice for many consumer, commercial, industrial and technical applications.



Common Grades of Neodymium Magnets

Grade BR HC Hcj (BH)MAX
N35 11.7-12.1 KGs >11.0 KOe >12 KOe 33-35 MGOe
N38 12.2-12.6 KGs >11.0 KOe >12 KOe 36-38 MGOe
N40 12.6-12.9 KGs >11.0 KOe . >12 KOe 38-40 MGOe
N42 13.0-13.2 KGs >11.0 KOe >12 KOe 40-42 MGOe
N45 13.3-13.7 KGs >11.0 KOe >12 KOe 43-45 MGOe
N48 13.8-14.2 KGs >11.0 KOe >12 KOe 45-48 MGOe
N50 14.1-14.5 KGs >11.0 KOe >11 KOe 48-50 MGOe
N52 14.5-14.8 KGs >11.2 KOe >11 KOe 49.5-52 MGOe



Features of Neodymium Magnets

Maximum performance relative to size. Ideal for restricted space or compact applications.

Can be used in extremely cold conditions (e.g. in liquid nitrogen).

Standard Neodymium NdFeB is rated to +80°C (176°F) maximum. Can be rated to +100°C (212°F), +120°C (248°F), +150°C (302°F), +180°C (356°F), +200°C (392°F) and +220/230°C (428/446°F) with higher Hci versions.

High coercivity (Hci) to resist demagnetisation.

NxxT and L-NxxT alloys have better corrosion resizstance than standard NdFeB but still needs coating.



Custom Neodymium Magnets for Your Project

ZHAOBAO MAGNET has a large inventory of licensed neodymium rare earth magnets available for immediate online purchase at discounted volume prices. We offer Neodymium Discs, Rectangular or Square Neodymium Blocks, Rods, Rings and Rods in a variety of sizes, premium grades and finishes. Not all of our neodymium magnets are displayed on this website, if you do not see what you are looking for, please contact us today.


Sorted by Shapes and Dimensions


Block Magnet

Block Magnet

Arc Magnet

Arc Magnet

Cylinder Magnet

Cylinder Magnet

Ring Magnet

Ring Magnet

Radial Ring Magnet

Radial Ring Magnet

Special-shaped Magnet

Special-shaped Magnet



Sorted by Coatings



Magnets with Nickel Coating

Magnets with Nickel Coating

Zinc Coated Magnets

Zinc Coated Magnets

Magnets with Color Zinc Coating

Magnets with Color Zinc Coating

Magnets with Epoxy Coating

Magnets with Epoxy Coating

Phosphated Magnet

Phosphated Magnet

Teflon Coated Magnet

Teflon Coated Magnet



Applications of Neodymium Magnets

Neodymium magnets are available in several different sizes and variations, including neodymium bar magnets or neodymium blocks, neodymium disc magnets, neodymium pot magnets, neodymium ring magnets.

NdFeB magnets are widely used in electronics, electrical machinery, medical equipment, toys, packaging, hardware machinery, aerospace and other fields, the more common are permanent magnet motors, speakers, magnetic separators, computer disk drives, magnetic resonance imaging equipment Instruments, etc.



China's Top Manufacturer of Neodymium Magnets

ZHAOBAO MAGNET is one of the largest manufacturers of permanent magnets and magnetic components in China. Since 1999, we have provided our customers with everything they need in the field of magnets. We can manufacture neodymium boron magnets in a variety of sizes to meet your exact design specifications and any grade required.

Why choose us

Various Grades of Materials: We have a large inventory of licensed neodymium magnet materials in standard and premium grades to reduce production and lead times. We offer sintered neodymium magnets from N33 to N53 grades. Visit our Neodymium Magnet Materials page for more information and a data sheet about this material.

Various sizes can be customized: standard NdFeB rare earth magnets range in size from a few millimeters to about 150 millimeters, while components can weigh up to several tons. The standard shapes we carry include discs, blocks, rings and arcs of various sizes and grades. Non-standard shapes and sizes can be custom made to your exact specifications from raw material.

Advanced Manufacturing Process: Unlike some small neodymium magnet companies in China, all the production equipment used in our manufacturing process are imported and inspected regularly. In addition, our team of engineers continuously learn advanced production experience abroad to improve our strength.

Strict Quality Control: Quality control is also important throughout the manufacturing process. ZHAOBAO MAGNET conducts three inspections before delivery: initial inspection, patrol inspection and final inspection. And submit relevant test reports to our customers. To ensure that our delivered products are free of quality defects and other problems.
