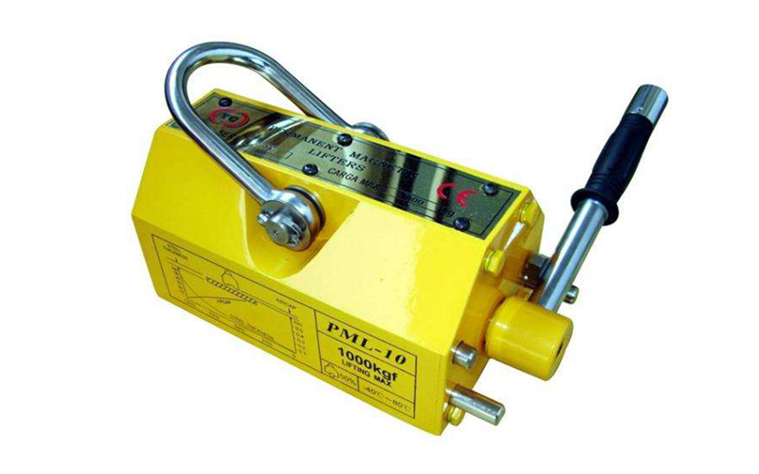

Permanent Magnet Cranes

Permanent Magnet Cranes

Description

Reviews

1. Characteristics:

1. Powered by the high-performance NdFeB, the adsorbability is strong and reliable.
2. It can easily hold and release steel pieces by the handle switch, which will improve the efficiency of workpiece hoisting and moving.
3. 3.5 times safety factors can ensure the working state even if there is a big gap between the workpiece and the jack.
4. The maximum working temperature is 80℃

2. Performance:

Series one
Part No Rate lifting Force (Kgs) Rate lifting Force for round shape (Kgs) Max pull-off force(Kg) Dimensions (mm) Weight
        L B H R
PML_100 100 30 350 60 100 70 126 3
PML_300 300 100 1050 94 168 96 155 10
PML_600 600 200 2100 120 222 116 196 24
PML_1000 1000 300 3500 132 273 120 285 50
PML_1500 1500 500 5250 152 360 173 426 70
PML_2000 2000 750 7000 152 460 173 426 125
PML_3000 3000 1000 10500 286 458 261 521 225
PML_6000 6000 2000 21000 430 600 355 730 420
Series two
Part No Dimensions(mm) Net weight(kg)
  L L1 B H1 H2 B1 F G
PML_100A 120 90 55 60 50 120 35 25 3
PML_300A 203 165 87 89 68 223 45 38 10
PML_600A 266 226 112 109 89 287 58 45 21
PML_1000A 330 290 148 125 95 364 60 52 40
PML_1500A 385 330 178 145 118 447 70 65 65
PML_2000A 470 420 178 145 118 487 70 65 83
PML_3000A 490 435 210 175 128 487 80 70 125

3. Applications:

In the hoisting process, carry out the holding, simplified loading and unloading, and handling works of blocky, cylindrical, or other shapes of ferromagnetic workpiece. It is an ideal hoisting tool for factories, docks, warehouses, transportation, and other industries.
