A neodymium magnet is a type of rare earth magnet made from an alloy of neodymium, iron, and boron. It is the strongest type of permanent magnet currently known, and it is widely used in a variety of applications, including motors, generators, speakers, and headphones.
When choosing neodymium magnets, because there are many grades of neodymium magnets out there, many people do not know how to choose a suitable neodymium magnet. So how to choose the right neodymium magnet? Hope the following points can help you.
1. Magnetic strength
The magnetic strength of a neodymium magnet is measured in mega Gauss Oersteds (MGOe). The higher the MGOe rating, the stronger the magnet. Neodymium magnets are available in a range of grades, with each grade representing a different level of magnetic strength. The most common grades are N35, N40, N45, N50, and N52, with N52 being the strongest.
When choosing the magnetic strength of a neodymium magnet, it is important to consider the intended use of the magnet and the forces that it will need to withstand. Here are a few tips for choosing the appropriate magnetic strength:
1) Consider the weight of the object the magnet will be supporting: A magnet with a higher MGOe rating will be able to support a heavier object.
2) Consider the distance between the magnet and the object: A magnet with a higher MGOe rating will be able to support an object from a greater distance.
3) Consider the size of the magnet: A larger magnet will generally have a stronger magnetic field than a smaller magnet, even if they have the same MGOe rating.
4) Consider the cost: Neodymium magnets with a higher MGOe rating tend to be more expensive than those with a lower rating.
2. Size and shape

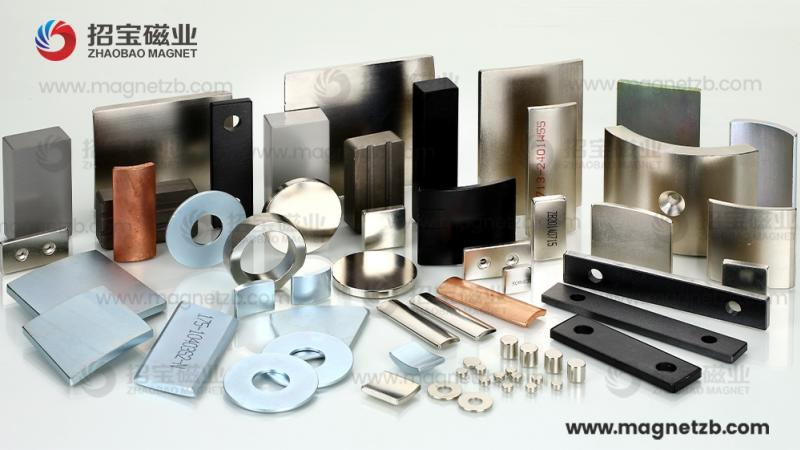

Neodymium magnets come in a variety of sizes and shapes, including discs, cylinders, blocks, and spheres. The size and shape of a neodymium magnet can be customized to meet the specific needs of an application.
1) Discs: Disc-shaped magnets are thin and flat, with a circular cross-section. They are commonly used in motors, generators, and other applications where a compact, flat magnet is required.
2) Cylinders: Cylindrical magnets are long and thin, with a circular cross-section. They are commonly used in motors, generators, and other applications where a compact, long magnet is required.
3) Blocks: Block-shaped magnets are rectangular and have a uniform thickness. They are commonly used in a variety of applications, including motors, generators, and permanent magnets in devices such as MRI machines.
4) Spheres: Spherical magnets are round and have a uniform diameter. They are commonly used in sensors and as decorative magnets.
5) Arc: The arc-shaped magnet is bent, with a small fan-shaped section. They are commonly used in motors, generators, and other applications where curved magnets are required.
6) Ring: The ring magnet is a ring. They are are commonly used in sensors, motors, generators and other applications where ring magnets are required.
It is important to note that the size and shape of a neodymium magnet can affect its magnetic properties. For example, a long, thin magnet may have a stronger magnetic field at its poles than a shorter, thicker magnet with the same MGOe rating.
3. Temperature tolerance
The temperature tolerance of a neodymium magnet refers to the highest temperature at which the magnet can be used without losing its magnetism. Neodymium magnets are sensitive to temperature and can lose their magnetism if they are exposed to high temperatures. The temperature at which a neodymium magnet will lose its magnetism is known as the Curie temperature.
The Curie temperature of a neodymium magnet varies depending on the specific alloy used to make the magnet. Some common alloys used in neodymium magnets have Curie temperatures ranging from around 200°C to 330°C.
It is important to choose a neodymium magnet with a high-temperature tolerance if it will be used in a high-temperature environment. This can help to ensure that the magnet retains its strength and performance over time.
4. Coating
Neodymium magnets are prone to corrosion, so they are often coated to protect them from the elements. The most common coatings for neodymium magnets are nickel, zinc, and epoxy.
1) Nickel coating: Nickel is a soft, shiny metal that is often used to coat neodymium magnets. Nickel-coated magnets are resistant to corrosion and have a high resistance to demagnetization. However, they are not suitable for use in high-temperature environments, as the nickel coating can peel or flake off at temperatures above 150°C.
2) Zinc coating: Zinc is a soft, white metal that is often used to coat neodymium magnets. Zinc-coated magnets are resistant to corrosion and have a moderate resistance to demagnetization. They are suitable for use in a wide range of temperatures, but they may not be as durable as nickel-coated magnets.
3) Epoxy coating: Epoxy is a type of plastic that is often used to coat neodymium magnets. Epoxy-coated magnets are resistant to corrosion and have a high resistance to demagnetization. They are also suitable for use in a wide range of temperatures. However, they may not be as durable as nickel- or zinc-coated magnets.
It is important to choose a neodymium magnet with a suitable coating if it will be used in a damp or corrosive environment. This can help to ensure that the magnet retains its strength and performance over time.
5. Cost of neodymium magnet
The cost of a neodymium magnet can vary depending on a variety of factors, including the size, shape, magnetic strength, temperature tolerance, and coating of the magnet. In general, neodymium magnets with higher magnetic strength, a higher temperature tolerance, or a more durable coating will be more expensive than those with lower ratings or less durable coatings. Larger and/or more complexly shaped magnets may also be more expensive than smaller, simpler magnets.
In fact the most important factor is the price trend of raw materials, especially prices PrNd, DyFe and Tb. ZHAOBAO MAGNET have rich experiences since 1999, and know well about price trend of raw materials so to make good production plan (purchase plan) with customers to offer good cost efficient magnets.
In general, neodymium magnets are relatively inexpensive and are widely available at a variety of price points. It is important to choose a magnet that is within budget, while also considering the specific needs of the intended application.
6. Intended use of neodymium magnet
The intended use of a neodymium magnet is an important factor to consider when choosing a magnet. Neodymium magnets are used in a wide variety of applications, including motors, generators, speakers, headphones, and many other devices.
Here are a few examples of how neodymium magnets might be used:
1) Motors: Neodymium magnets are used in electric motors to generate the magnetic field that drives the motor. The size, shape, and magnetic strength of the magnet will depend on the specific requirements of the motor.
2) Generators: Neodymium magnets are also used in generators to generate electricity. The size, shape, and magnetic strength of the magnet will depend on the specific requirements of the generator.
3) Speakers: Neodymium magnets are used in speakers to generate the magnetic field that drives the speaker cone. The size, shape, and magnetic strength of the magnet will depend on the specific requirements of the speaker.
4) Headphones: Neodymium magnets are used in headphones to generate the magnetic field that drives the speaker's diaphragm. The size, shape, and magnetic strength of the magnet will depend on the specific requirements of the headphones.
5) Other devices: Neodymium magnets are also used in a wide variety of other devices, including MRI machines, sensors, and many other electronic and mechanical devices. The size, shape, and magnetic strength of the magnet will depend on the specific requirements of the device.
It is important to consider the intended use of a neodymium magnet when choosing a magnet to ensure that it is suitable for the specific application.
